DeskCNC 2nd Generation Controller Board

The DeskCNC 2nd Generation Controller utilizes a microcontroller to perform the timing and interpolation functions for smooth operation under Windows.
  • Runs smoothly on any system that can comfortably run Windows (95, 98, Me, XP, NT, 2000).
  • Fast Block Processing when machine is running (over 300 Blocks/Sec).
  • True Linear Acceleration Ramp (programmable) throughout the 60 - 125,000 SPS range.
  • Any Accel Profile is programmable.
  • True 4 axis interpolation.
  • +-2  Billion step Absolute positioning.
  • 230 move First In/First Out Buffer.
  • RS232 Intelligent Controller running at 115K Baud.
  • Continuous Motion Contouring.
  • Mist, Flood, CW,  CCW, AUX1, AUX2, and AUX3 outputs.
  • PWM Output for Spindle Speed Control.
  • Single Channel Quadrature Encoder input.
  • Flash reprogrammable firmware updates.
  • Requires 9 pin Serial Cable.
  • Requires 9 Vdc external power supply and enclosure.

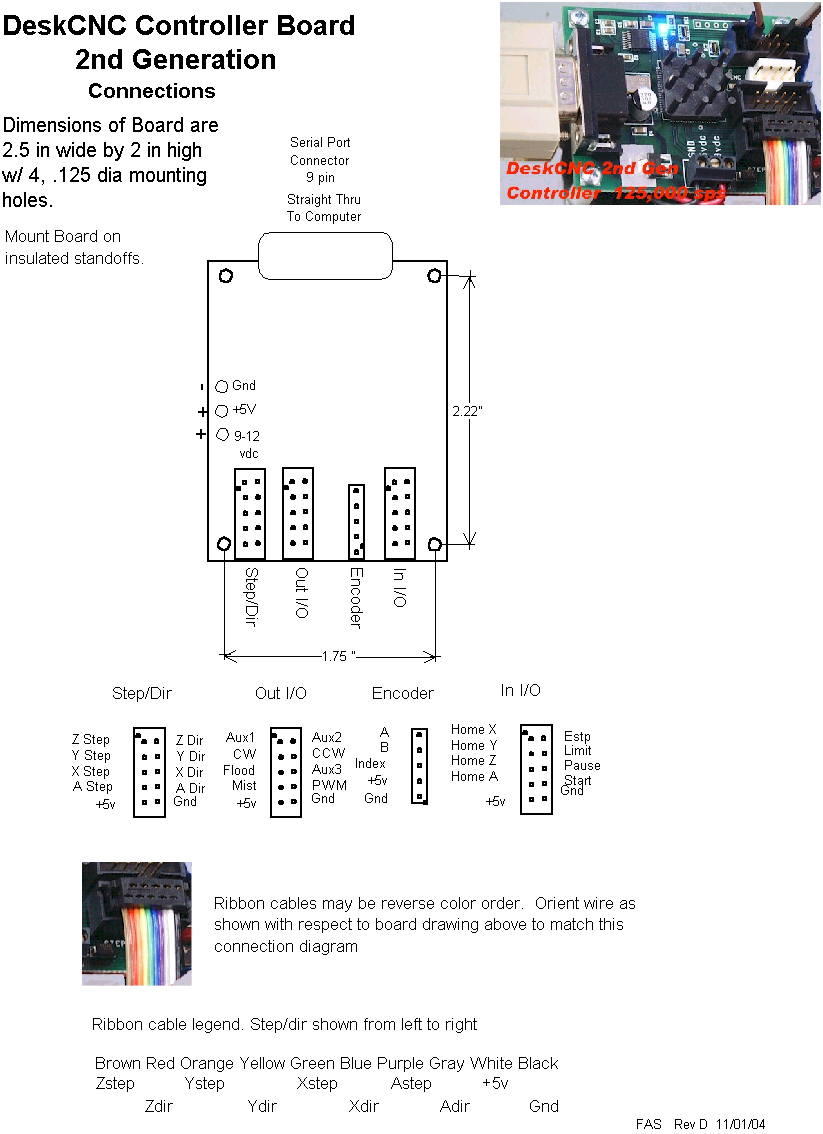

2nd gen controller setup
